ULTRACAGE TM

THE SIMPLE COST-EFFECTIVE SOLUTION FOR
CREATING A KENNEL ANYWHERE YOU NEED IT

Ultracage permits conversion of an existing level floor space into a complete kennel facility. Simple, plasticdrain plumbing is assembled between the stalls and the existing floor, eliminating the cost of extensive subfloor plumbing. The one-piece fiberglass stall has rounded corners with a standard drain opening. There are no perforations or seams to leak or harbor bacteria. Run dividers are aluminum rod grills or metal-framed, high density polyethelene panels. Choice of aluminum-rod gates or exclusive GlasDor metal- framed safety glass doors. Both closures are reversible.

ULTRACAGE ECONOMY The modular Ultracage system provides warm, dry, low-maintenance kennel space with significant savings in space and installation costs. Compare the savings.

QUALITY MODULAR STALLS OF HEAVY DUTY FIBERGLASS

Large rear-centered drain joins with above-ground 2"to 4" PVC pipe.
Dotted line indicates reduced stall height of "Remodel" Model.
Run floor slopes 1/4" per foot from front to rear for drainage.
Smooth molded fiberglass interior with rounded corners provides
sanitary comfort. Optional HiDry PVC-coated floor racks are also
available in Ultracage sizes. See Accessories listing below.

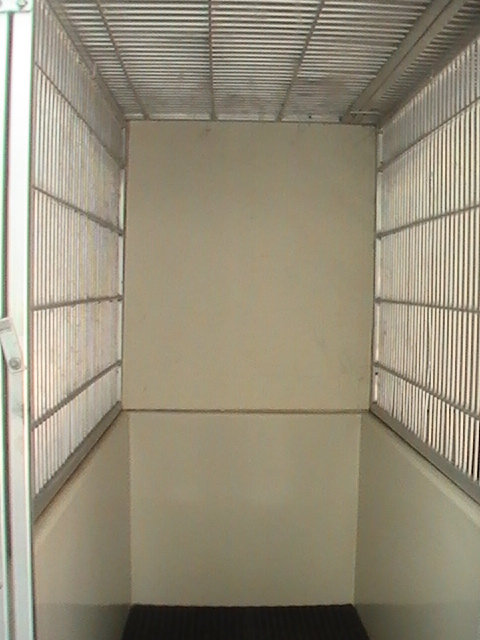

~ 3X5 Ultracage with Rod Top ~

The 3' X 5' X 6' high Ultracage is the most popular size for boarding and hospital use. The divider above the 3' fiberglass stall can be rods as shown or solid, high density polyethylene. This picture shows the rod top, which we can provide as an extra part if needed.

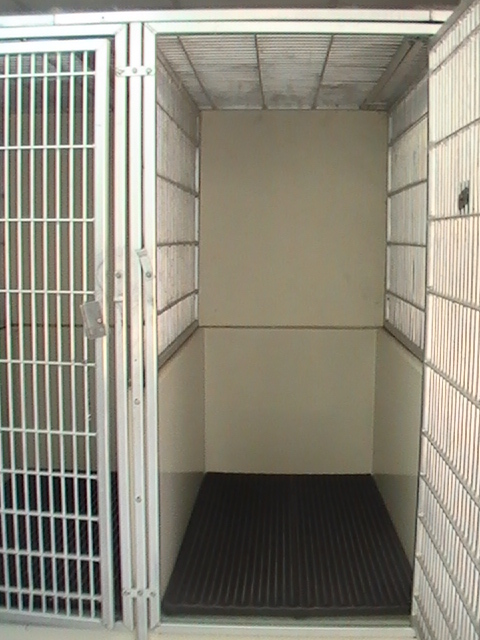

~ 3X5 Ultracage with Rack Floor ~

This photo shows HiDry, the baked-on pvc-coated aluminum rack floor, which is also available as an extra for all three Ultracage sizes: 30" X 48", 36" X 60" and 48" X 72".

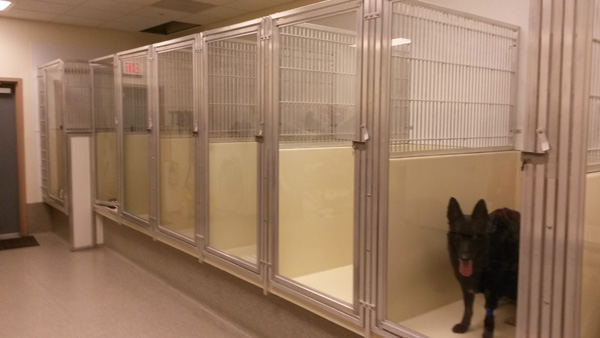

~ Bank of Ultracage Runs with One Foot Tiled between Cage and Floor ~

The Ultracage is installed on a frame with leveling legs to hold the cage about 12" above the floor to allow drain plumbing above the floor with 2" ABS or PVC pipe to contain the effluent to a nearby sewer connection. The advantage is easy cleaning, elimination of the gutter drain and control of odor and disease. Ceramic tile has been used over water resistant tile backer board to close the gap between the floor and the kennel. You can also use linoleum coved up and under the flange on the Ultracage front. The obvious purpose is to keep water and creatures out.

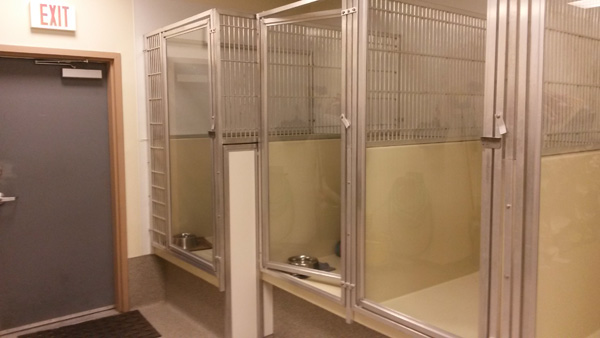

This photo shows how the 12" space below the fiberglass is covered to prevent water etc from getting under the kennels. We used wonder-board and ceramic tile under the flange below the gate to the floor. FRP or coved linoleum can also be used.

ULTRACAGE STANDARD SIZES & COSTS

MODELS

Model 1:
Ideal for boarding
cats and small dogs

Model 2:
Our favorite for
veterinary hospitals

Model 3:
Can accommodate
two large dogs

NEW!
"Remodel" Model:
30" sides permit easy access in tight spaces!
Dimensions

2'6" x 4' x 36"

3' x 5' x 36"

4' x 6' x 36"

3' x 5 ' x 30"
Ultracage Package: 1 stall, 1 gate 1 divider.
(See Crating below)

Call for price

 Call for price Call for price Call for price

Accessories
Fiberglass stall only: Call for price Call for price Call for price Call for price
Rod Gate or Glas-Dor
(See Crating below)

28" x 71"
Call for price

34" x 71"
Call for price

46" x 71"
Call for price

34" x 71"
Call for price
Aluminum foundation frame Call for price Call for price Call for price Call for price
Aluminum divider
with rods		 Call for price Call for price Call for price Call for price
Aluminum skeleton without rods Call for price Call for price Call for price Call for price
Aluminum isolation (solid sheet) Call for price Call for price Call for price Call for price
Aluminum back w/rods Call for price Call for price Call for price Call for price
Aluminum isolation back Call for price Call for price Call for price Call for price
HiDry aluminum
rack floors (below)		 Call for price Call for price Call for price Call for price
Stall side trim panel Call for price Call for price Call for price Call for price

Package price includes: Fiberglass stall, choice of framed rod gate or GlasDor and one divider side with rods.
Crating: Call for price F.O.B Factory (shipping freight collect)
Prices subject to change without notice.

Long term economy from labor-saving installation and simplified maintenance.

Adaptable to existing space.

Relocateable, and tax deductable.

Comfortable, sanitary, easy to clean.

Minimizes odor and kennel noise.

Connect to any sewer in the area with above the floor plastic plumbing

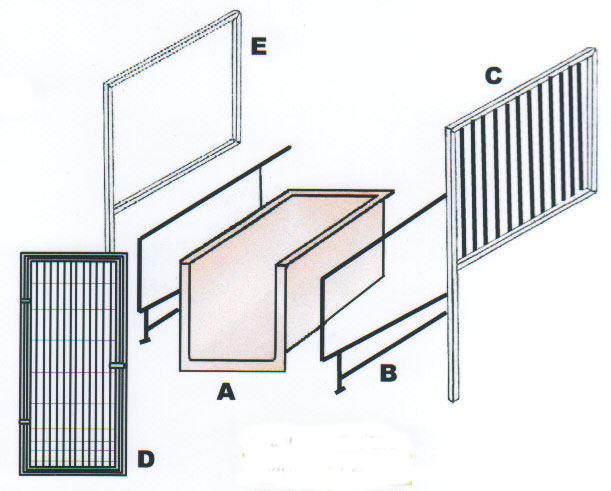

SIMPLE ULTRACAGE MODULAR INSTALLATION

A. One Piece Fiberglass Stall mounts on plywood deck (not shown). Above foor drains are centered 6" from rear wall.

 C. Cage Dividers fit over joint between stalls and attach to foundation frame and existing rear wall. Available in three forms: as an open frame (E) against an end wall; with an aluminum rod grill; or with solid hi-density polyethelene for isolation.

B. Foundation Frame with leveling legsholds sloping plywood deck and stall.

 D. Gate availale as aluminum rod grill, or exclusive Glasdor TM safety glass. Reversible to swing left or right, in or out.

NEW! ALUMINUM FOUNDATION FRAMES

Fast, simple installation. Aluminum foundation frames create a 12" raised stall floor and feature 1/4" per foot slope from front to rear. Leveling legs adapt to any floor and slope.

HiDry TM RACK FLOORS & TABLETOPS

HiDry rack floors and table tops are included with the Isocage and Ultratable. They are also available as optional flooring for Ultracage and Econocage in standard or custom sixes. HiDry Racks are one-piece aluminum decking with solid aluminum supports and framing. The durable, baked-on PVC coating is autoclavable and longlasting.
